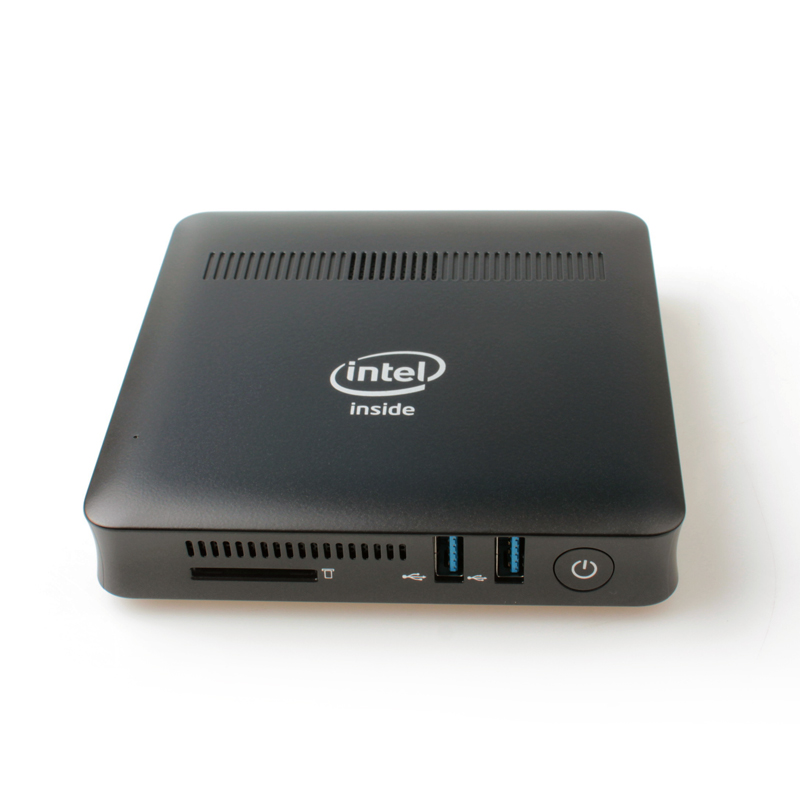

Intel Celeron J3455 Mini PC

Apollo Lake J3455 Processor

J3455 Mini PC Giga35 is built with the latest generation of Intel’s Apollo Lake processor.

Apollo Lake succeeds Cherry Trail as the next platform for Atom-based devices, based on the Goldmon x86 icroarchitecture. Although still based on a 14nm process, Apollo Lake‘s key differentiating factor will be its Gen 9 graphic architecture, the very same use in the beefier Skylake processors. This would allow devices powered by an Apollo Lake chip to offer hardware-based playback of 4K content，thanks to support for hardware decoding of HEVC and VP9 codecs.

The Intel Celeron J3455 is a 64-bit Dual Core processor which runs at a dynamic frequency from 1.5GHz up to 2.3GHz based on the need of the application. Memory support up to 8GB.

Intel J3455 mini pc features:

  • Intel Apollo Lake J3455 CPU, 14nm techonology, 10W TDP low power consumption.
  • Portable size with VESA mount.
  • HDMI 1.4b support 4K video.
  • With 1000M LAN RJ45 port.
  • Could be customized maximum 8GB RAM
  • 1*m.2 SATA SSD bay for external storage and 1*SD slot as
    alternative as well.
  • Could be pre-installed Windows 10 or Linux(Ubuntu)

Applications & Markets:

  • Gaming
  • Media and Entertainment
  • Intelligent Vending
  • Digital signage
  • Home Automation
  • Industrial Automation etc

Parameter Model Name Giga35
CPU Intel® Apollo Lake J3455
L2 Cache Supports Intel® Burst Technology  Supports 2MB of L2 Cache
Operation System Window10 home / Linux Ubuntu
Product size 120*120*25mm    230g
Color Black

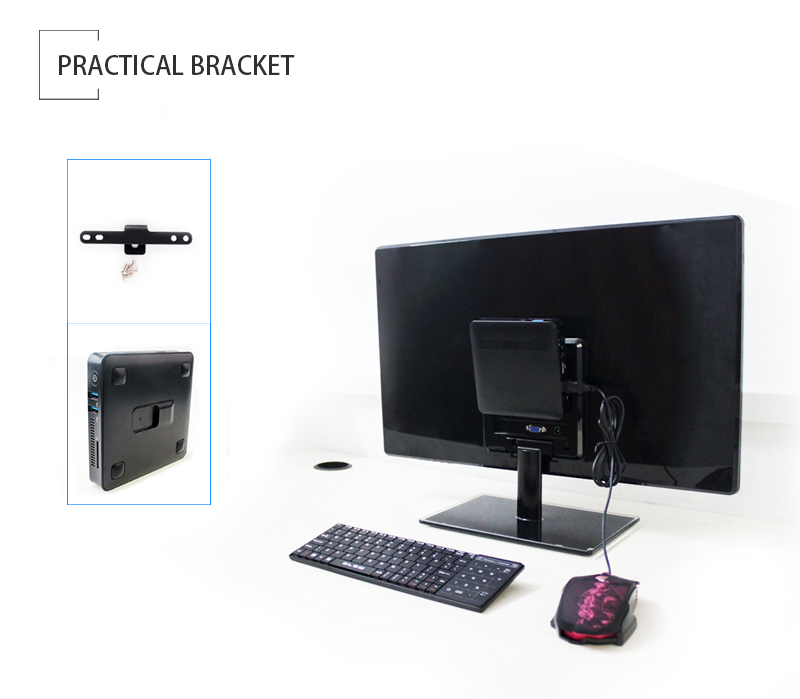

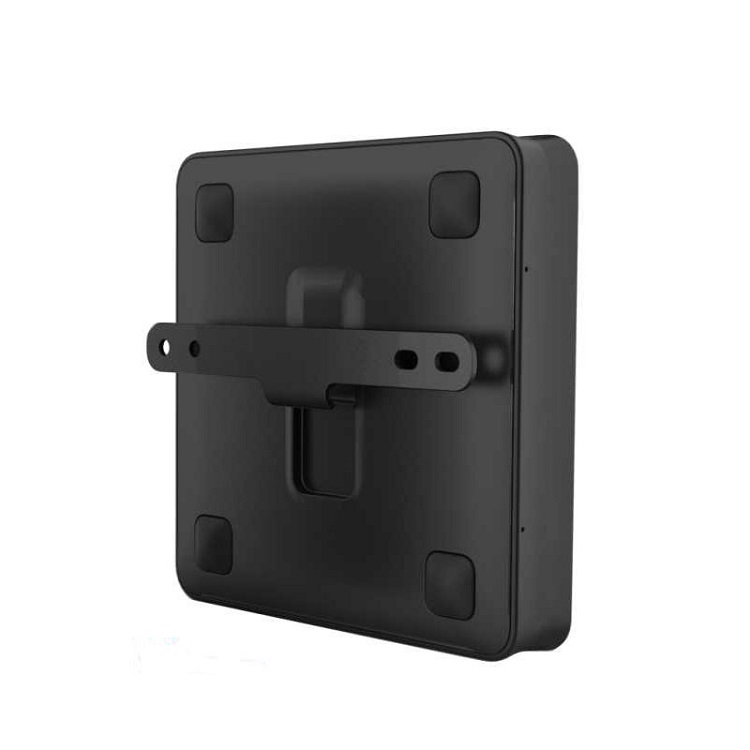

Support VESA Mount Support
RF2.4G Remote Option
Processor Launch Date Q3′ 2016
Processor Base Frequency 1.1GHz
Burst Frequency 2.2GHz
Instruction Set 64 bit
Grpahics Processor Intel® HD Graphics 500
Grpahics Base Frequency 200 MHz
Grpahics Burst Frequency 700 MHz
SDRAM Memory Size  LPDDR3-1600MHz, up to 1867MHz   2GB/4GB/8GB
EMMC 32GB/64GB
SSD(2242) 128GB/256GB  (Option)
Wired Lan Gigabit etherent RJ45 Ethernet 1000/100/10
Wireless /Bluetooth Intel Stone Peak AC3165 802.11 a/b/g/n/ac 1×1 MIMO and Bluetooth 4.2 Combo Module

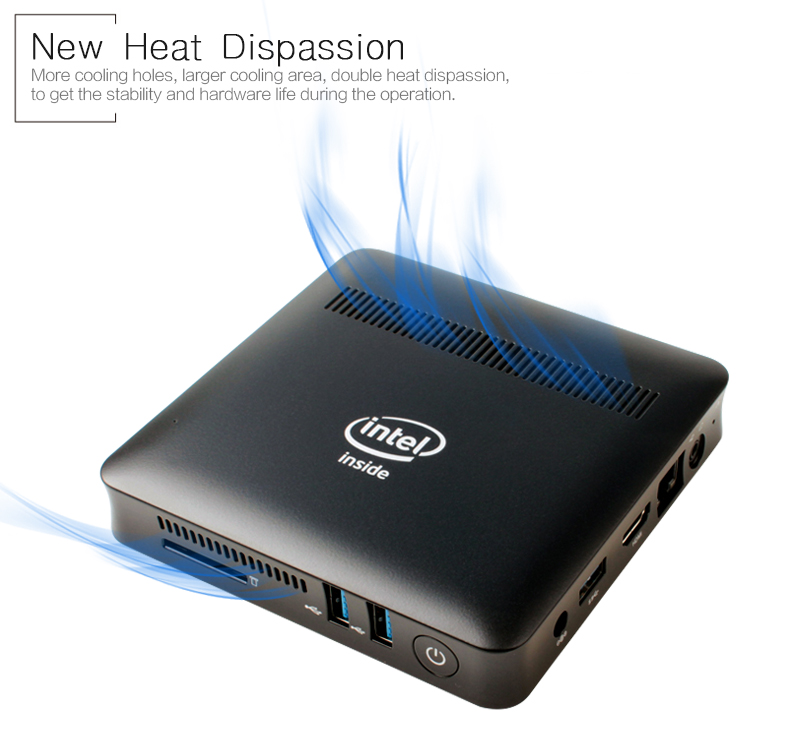

Cooling Built-in heatsink
Intel Wireless Display YES

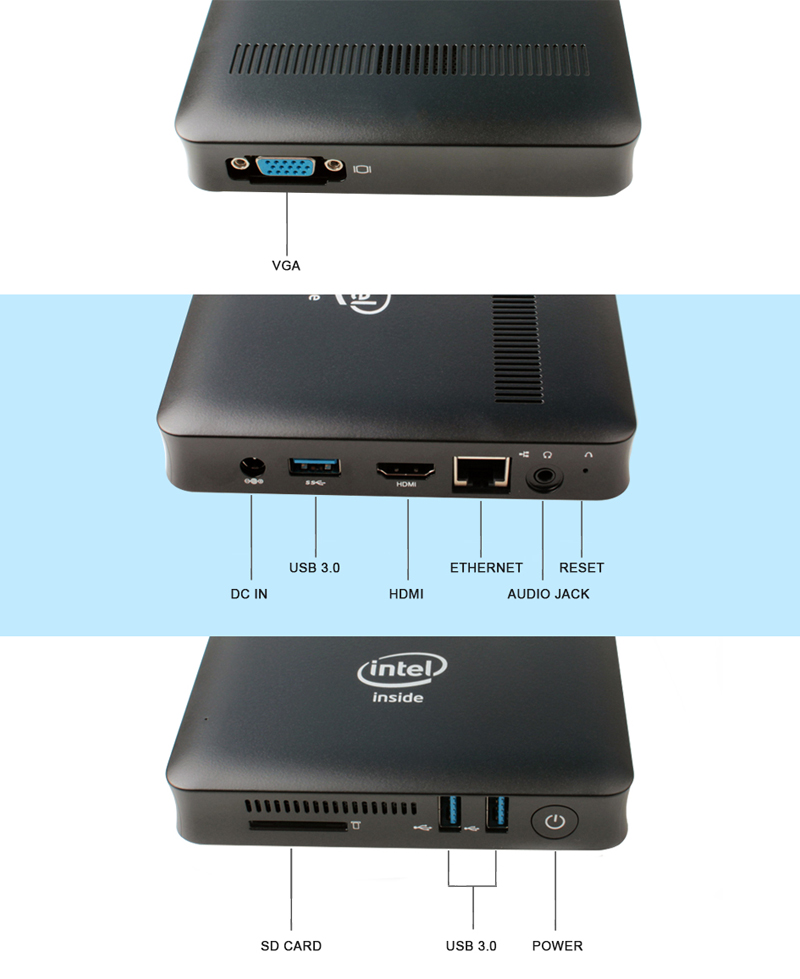

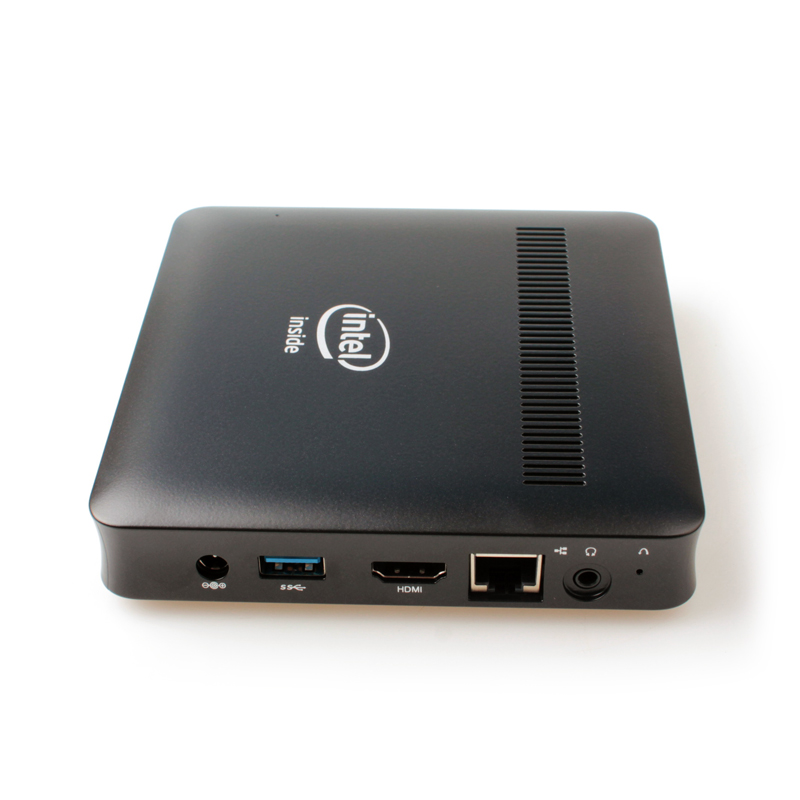

I/O Ports Power Switch 1* Power button
DC IN 1* DC in
Earphone Audio jack 1*3.5mm,Stereo
USB A type 3*USB 3.0
HDMI Output 1*HDMI 1.4

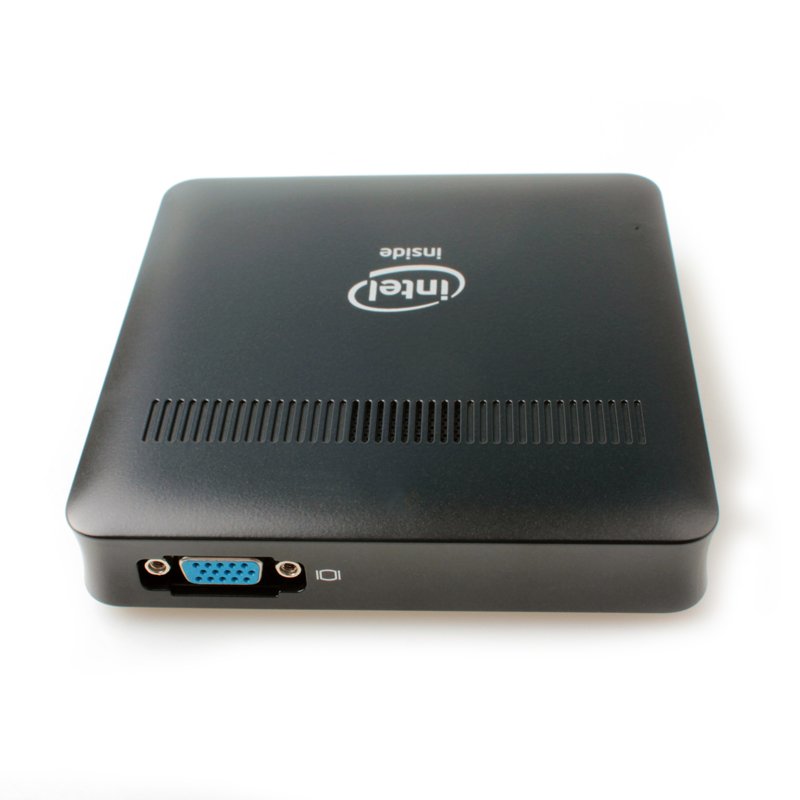

VGA Output 1*VGA
SD Slot Yes
Packing Information Gift box size 23*13*6.3cm
G/W 0.6kg
Power Adpater 1* Power adaptor AC 100~240V, 50/60Hz,12V/2A
