J4115 Mini PC Palm Size Fanless Windows 10/Linux Intel Micro Computer
The New Fanless J4115 Mini PC GL8 with 4 USB offers quad core Intel Gemini Lake processor, further more, dual band WiFi/Bluetooth and VESA mount. On the other hand, considering security, this small form factor PC engineered with a Kensington Lock slot, protect it from lost/theft.
- Intel J4115 quad-core processor
- 8GB DDR4/m.2 SATA SSD
- HDMI & VGA dual display out, 4 USB3.0, RJ45 LAN,3.5mm Audio Jack
- Kensington Lock slot/VESA mount
Overview

J4115 Mini PC Palm Size Fanless Windows 10/Linux Intel Micro Computer
Our new Intel Gemini Lake J4115 Mini PC features the latest Intel Gemini Lake processing, adding impressive performance into our series of fanless Mini PCs. Available with the Quad-Core multi-threaded Gemini Lake J4115 processor and up to 8GB of DDR4 memory, the GL8 provides plenty of power for multitasking workloads and applications its rich I/O connects to.
Fanless and Flexible
The new Home Office J4115 Mini PC is engineered fanless cooling sink and ultra compact size. Fanless design and engineered vents at the bottom chassis prevents ingress ranging from dust, debris, chemical, and moisture. Optimized for efficient, reliable passive cooling, the GL8’s fanless construction and solid-state storage mean no moving parts, that’s to say, making zero noise and extending the lifespan of the system considerably. Versatile mounting capabilities coupled with its small footprint allow the new Mini PC fit into many space-constrained applications.




A Mini PC for Everything…

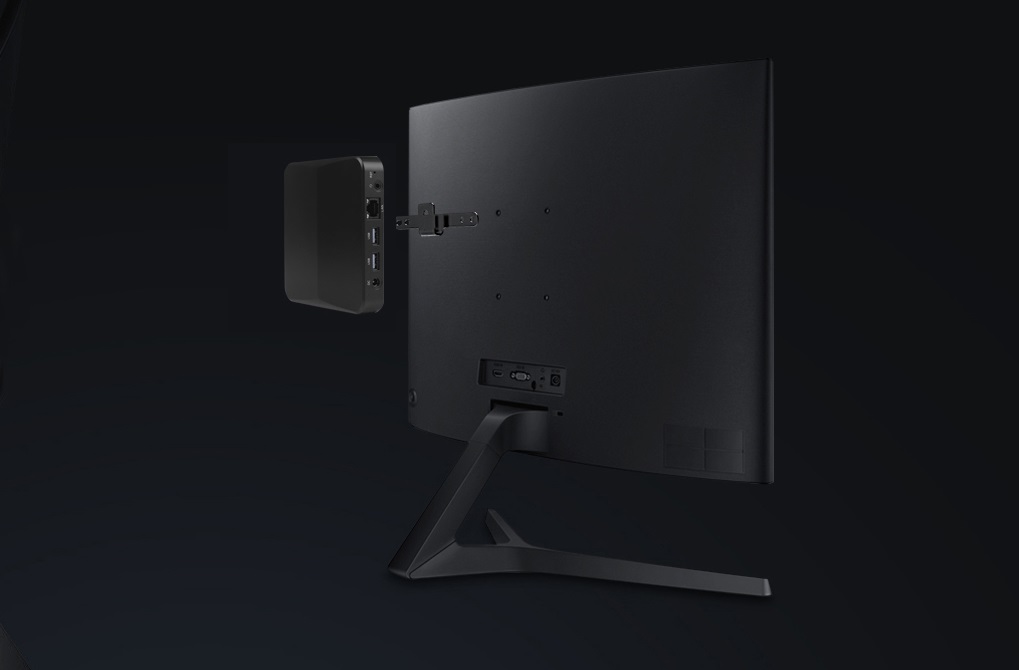

GL8 Mini PC thrives in tight quarters. Despite its compact size, this system refuses to sacrifice on I/O, offering HDMI ports and a VGA for dual independent displays, and can run one at 4K resolution. Besides, Gb LAN, 4 USB 3.0 ports , as well as an micro SD card slot. Provide plenty of interface options. Inside, in addition to the high-speed, reliable m.2 SSD, it built-in Wi-Fi/Bluetooth combo chipset and two high-performance antennas. Mount it to wall or back of monitor with the available VESA mounting brackets and Kensington lock slot for worry-free, secure computing.
Specification
| Item | Type | Detail |
| Case | Type | BOX-PC |
| Dimensions | 121.7*121.7*23.7mm | |
| Material | ABS+PC | |
| Hardware | ||
| CPU | Processor | Intel Gemini Lake platform N4100/J4105/J4115/N5000/J5005/N4000 optional |
| L2 Cache | 4MB | |
| Frequency | 1.10GHz(turbo burst 2.8GHz) | |
| GPU | chipset | Intel®UHD 600-605 |
| Frequency | 200MHz(up to 800MHz) | |
| Memory | Type | DDR4/LPDDR4 upto 2400 MT/s |
| Capacity | 8GB SOC | |
| Storage | eMMC | 64GB/128GB optional |
| SSD | SATAⅢ m.2 2242 SSD 64/128/256/512GB optional | |
| Audio | chipset | realtek ALC269,support Line-in,Line-out |
| Connectivity | ||
| WIFI | Chipset | Intel 7265 |
| Protocol | IEEE 802.11abgn, 802.11ac, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w | |
| Bluetooth | Chipset | intel7265 |
| Protocol | 2.4G/5G Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, 4.1,4.2 (BLE) | |
| Enthernet | LAN | 10M/100M/1000Mbps |
| I/O ports | ||
| USB | USB3.0 | USB3.0*4 |
| HDMI | Video and Audio | HDMI 1.4A x1 |
| VGA | Video | VGA x1 |
| RJ45 | enthernet | RJ45 x1 10M/100M/1000Mbps |
| Power | DC IN | 5.5/2.5mm DC Jack x1 |
| Security | Kensington | Kensingtong lock slot*1 |
| Button | power key | x1 |
| reset | x1 | |
| Software | ||
| Operating system | version | Linux/Win10 home/Win10 pro/Win10 IOT |
| Accessories | ||
| Power adaptor | 3.5mm | 12V/2A |
| VESA mount | Bracket | VESA bracket*1 |
| Screws | screw*2 | |
