GB12
Intel Core i3/i5/i7 industrial mini PC in an all-metal chassis. Triple HDMI plus DisplayPort 1.4a output, dual 2.5G LAN, two switchable COM serial ports, and 4G LTE support — engineered for professional multi-display and industrial field deployments.
OEM / ODM Available
Custom branding, I/O modifications, OS preloading and volume pricing available for the GB12.
Enquire About OEM →3×HDMI + DisplayPort 1.4a
Four simultaneous 4K outputs — triple HDMI 2.0b and one DP 1.4a. Ideal for multi-monitor workstations, trading desks, and command centre deployments.
Switchable COM Ports
Side-panel RS232 / RS485 switchable via jumper. One fixed RS232, one switchable RS232/RS485 — connects to the widest range of serial industrial equipment.
Dual 2.5G Ethernet
Two Intel I225-V/I226-V 2.5GbE ports for high-throughput networking, dual-subnet routing, or failover redundancy in enterprise and industrial environments.
4G LTE Ready
Mini PCIe slot with onboard SIM socket supports 4G LTE modules — keeping the GB12 connected in remote sites where fixed-line or Wi-Fi is unavailable.
All-Metal Industrial Chassis
Robust metal chassis at 174×125×43mm rated for −20°C to +55°C continuous operation. VESA mount and wall mount bracket included as standard.
Dedicated Audio Jacks
Separate 3.5mm MIC In and Audio Out jacks on the front panel — an upgrade over single combo jacks for professional audio conferencing and media workflows.
Enterprise Remote Management
Wake on LAN, PXE boot, and auto power-on after power failure — designed for headless remote management and large fleet deployments.
Dual M.2 SSD Slots
One M.2 2280 SATA/NVMe and one M.2 2280 NVMe — flexible storage configuration with room for OS drive plus data drive.
| Processor (12th Gen) | Core i3-1215U · Core i5-1235U · Core i7-1255U — TDP 15W (Alder Lake-U) |
| Processor (13th Gen) | Core i3-1315U · Core i5-1335U · Core i7-1355U — TDP 15W (Raptor Lake-U) |
| GPU | Intel UHD Graphics (i3) · Intel Iris Xe Graphics (i5/i7) |
| Memory | 2 × SO-DIMM DDR4 — up to 64 GB |
| Storage | 1 × M.2 2280 SATA/NVMe SSD + 1 × M.2 2280 NVMe SSD |
| Display Output | 3 × HDMI 2.0b + 1 × DisplayPort 1.4a — 4K@60Hz simultaneous |
| LAN | 2 × 2.5G LAN RJ45 (Intel I225-V / I226-V) |
| Wi-Fi | M.2 2230 E-key — Wi-Fi ac / Wi-Fi 6 / 6E |
| 4G LTE | Mini PCIe slot + SIM slot |
| Front Panel | 1 × Power Button · 1 × MIC In · 1 × Audio Out · 4 × USB 3.0 (USB 3.2 Gen2) · 1 × USB Type-C |
| Rear Panel | 2 × 2.5G LAN · 3 × HDMI 2.0b · 1 × DP 1.4a · 2 × USB 2.0 |
| Side Panel | 1 × COM RS232/RS485 (jumper) · 1 × COM RS485/RS232 (jumper) |
| BIOS | UEFI · Wake on LAN · Auto power-on · PXE |
| Power | 100–240V AC input · 19V 3.42A / 19V 4.74A DC output |
| OS Support | Windows 10 · Windows 11 · Linux |
| Chassis | Metal — 174 × 125 × 43 mm · Weight: 0.98 kg |
| VESA Mount | 70×70 / 100×100 mm (included) |
| Operating Temp | −20°C to +55°C |
| In the Box | AC Adapter · HDMI Cable · VESA Mount · Wi-Fi Antenna |
Available with Intel 12th Gen Alder Lake-U and 13th Gen Raptor Lake-U. All 15W TDP for quiet, efficient operation in industrial environments.
Alder Lake
Raptor Lake

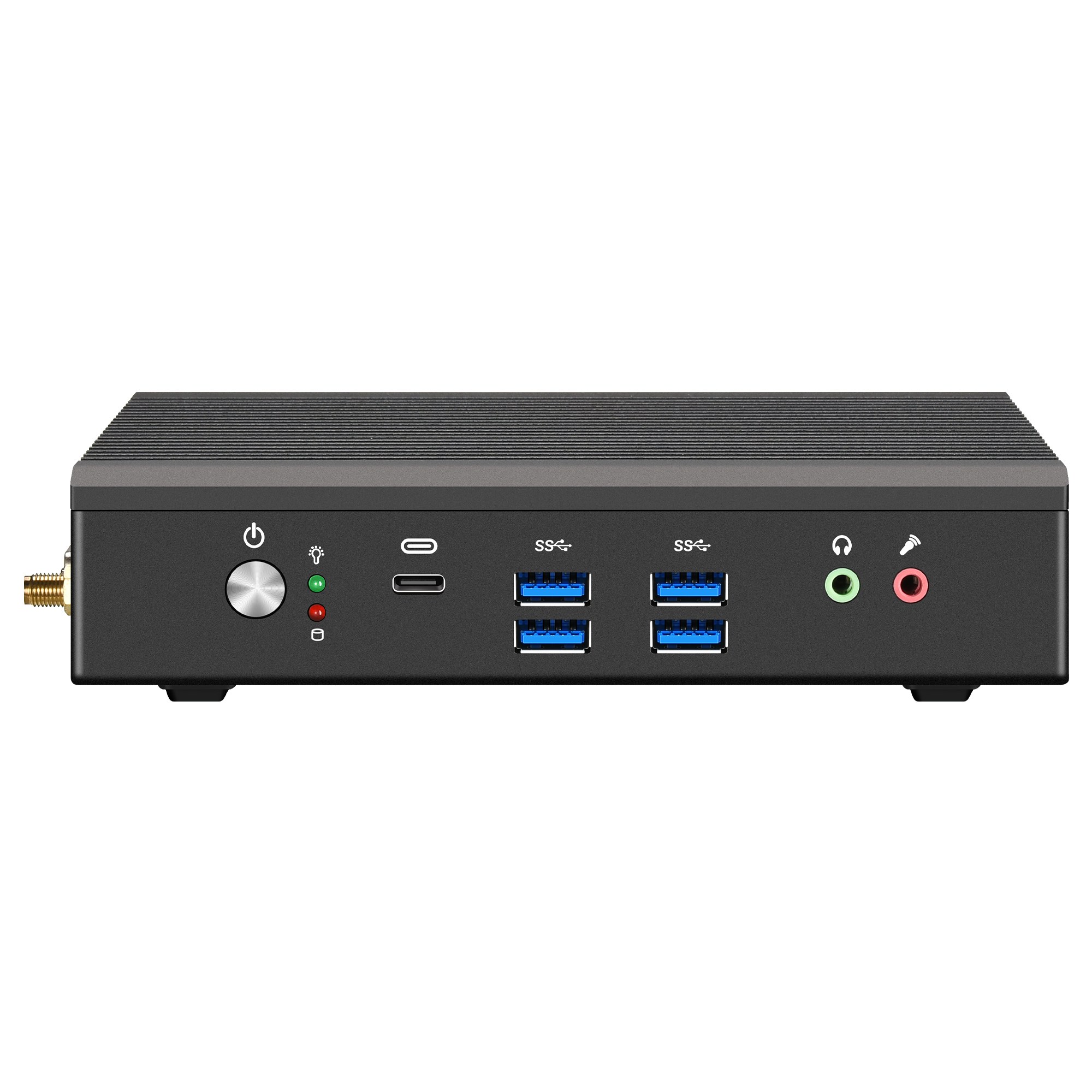

Front Panel
- 1 × Power Button
- 1 × MIC In (3.5mm)
- 1 × Audio Out (3.5mm)
- 4 × USB 3.0 Type-A
- 1 × USB 3.0 Type-C

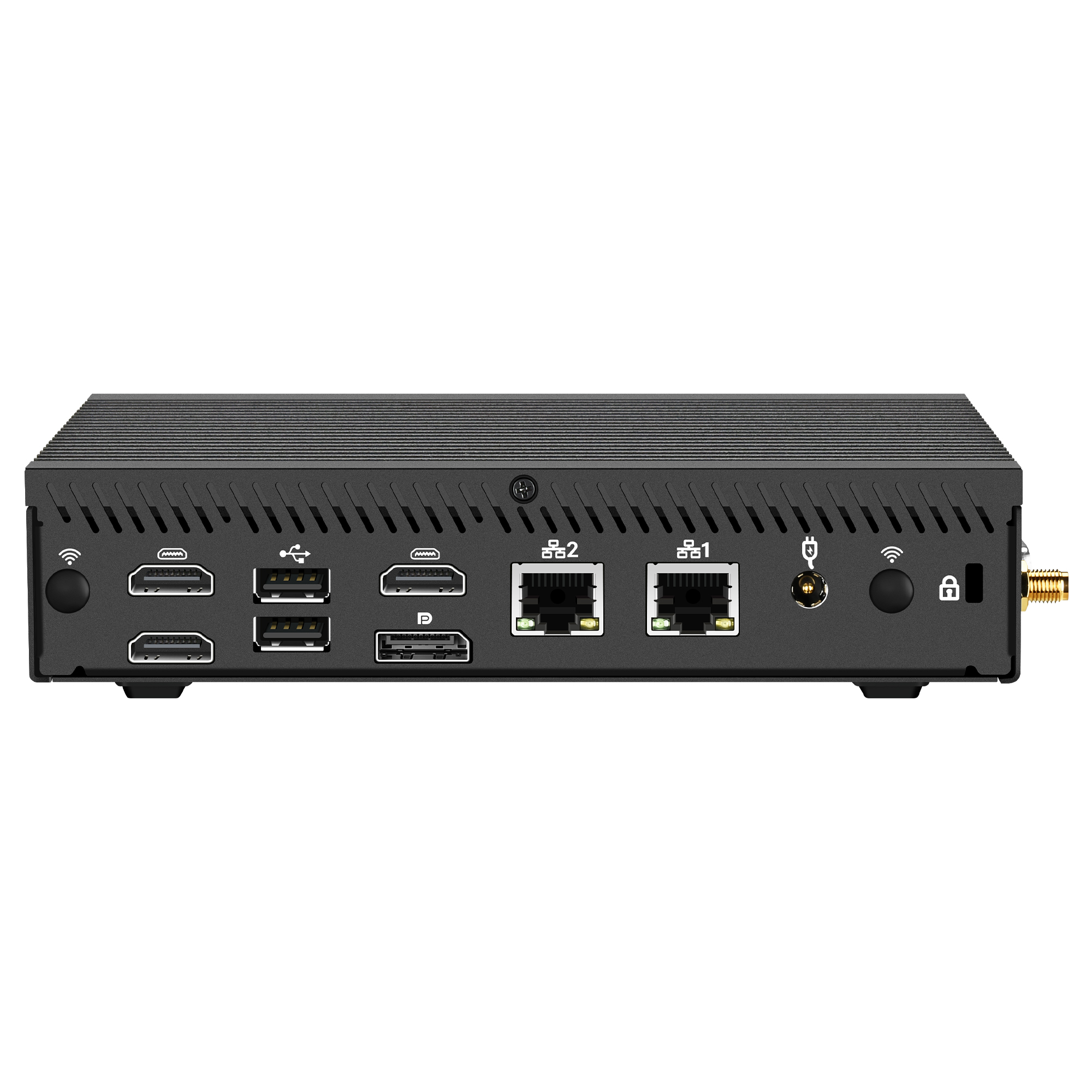

Rear Panel
- 3 × HDMI 2.0b (4K@60Hz)
- 1 × DisplayPort 1.4a (4K@60Hz)
- 2 × 2.5G Ethernet
- 2 × USB 2.0

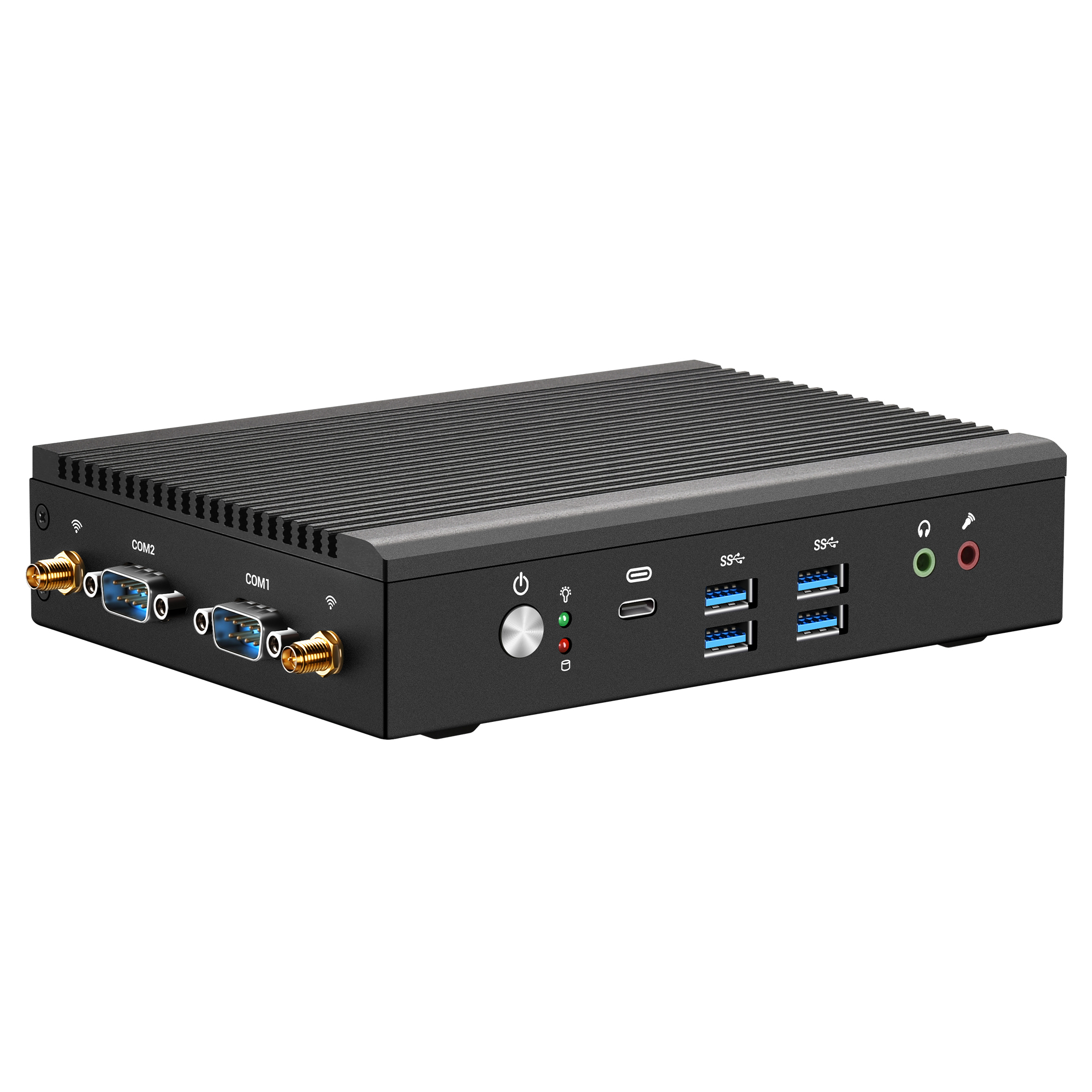

Side / Internal
- 1 × COM RS232/485 (jumper)
- 1 × COM RS485/232 (jumper)
- 4G LTE (Mini PCIe + SIM)
- Wi-Fi 6/6E (M.2 E-key)
- 2 × SO-DIMM DDR4 slots
- 2 × M.2 2280 SSD slots
- VESA 70×70 / 100×100mm
