GB13
Intel Core i3/i5/i7 in an ultra-slim 28mm all-metal chassis. Four simultaneous 4K HDMI outputs, DDR5 memory, dual 2.5G Ethernet, two COM serial ports, and optional 5G — the thinnest multi-display mini PC in the Gigabee lineup.
OEM / ODM Available
Custom branding, I/O modifications, OS preloading and volume pricing available for the GB13.
Enquire About OEM →Four Simultaneous 4K Outputs
Four HDMI 2.0b ports each running 4K@60Hz simultaneously. Optional HDMI CEC and onboard EDID Emulator for professional AV and signage deployments.
DDR5 Memory Standard
Two SO-DIMM DDR5 slots up to 64GB — improved bandwidth and lower power consumption compared to DDR4 at the same capacity.
Dual 2.5G Ethernet
Two Intel I226-V 2.5GbE ports for high-bandwidth networking, dual-network routing, or failover redundancy — rare in this form factor.
5G / 4G Cellular Ready
M.2 M-key slot with onboard SIM card slot — add a 5G or 4G module for always-connected operation anywhere, no Wi-Fi needed.
2×COM Serial Ports
Two COM232/485 ports (via front-panel jumper) for connecting industrial serial devices — rare in a 28mm chassis.
Enterprise BIOS
Wake on LAN, PXE boot, hardware RTC clock, TPM 2.0, and auto power-on after failure — full remote fleet management capability.
| Processor (12th Gen) | Core i3-1215U · Core i5-1235U · Core i7-1255U — TDP 15W (Alder Lake-U) |
| Processor (13th Gen) | Core i3-1315U · Core i5-1335U · Core i7-1355U — TDP 15W (Raptor Lake-U) |
| GPU | Intel UHD Graphics (i3) · Intel Iris Xe Graphics (i5/i7) |
| Memory | 2 × SO-DIMM DDR5 — up to 64 GB |
| Storage | 1 × M.2 2280 SATA/NVMe SSD + 1 × M.2 2280 SATA SSD |
| Display Output | 4 × HDMI 2.0b — 4K@60Hz simultaneous · Optional CEC · Optional EDID Emulator |
| LAN | 2 × 2.5G LAN (Intel I226-V) or 1×2.5G + 1×1G (RTL8111H) |
| Wi-Fi | M.2 2230 E-key — Wi-Fi ac / Wi-Fi 6 / 6E |
| 4G / 5G | M.2 M-key + onboard SIM slot |
| Security | TPM 2.0 (chip) |
| Front Panel | 1 × Power Button · 1 × Combo MIC · 3 × USB 3.0 · 1 × USB 3.0 Type-C · 2 × COM232/485 (jumper) |
| Rear Panel | 2 × 2.5G LAN · 4 × HDMI 2.0b · 2 × USB 2.0 |
| BIOS | UEFI · Wake on LAN · Auto power-on · PXE · RTC hardware clock |
| Power | 100–240V AC input · 19V 3.42A output |
| OS Support | Windows 10 · Windows 11 · Linux |
| Chassis | Metal — 195 × 135 × 28 mm · Weight: 0.78 kg |
| VESA Mount | 70×70 / 100×100 mm (included) |
| Operating Temp | −20°C to +55°C |
| In the Box | PSU + Power Cord · HDMI Cable · VESA Mount · Wall Mount Kit · Wi-Fi Antenna |
Available with Intel 12th Gen Alder Lake-U and 13th Gen Raptor Lake-U. All configurations run at 15W TDP for quiet, efficient operation.
Alder Lake
Raptor Lake

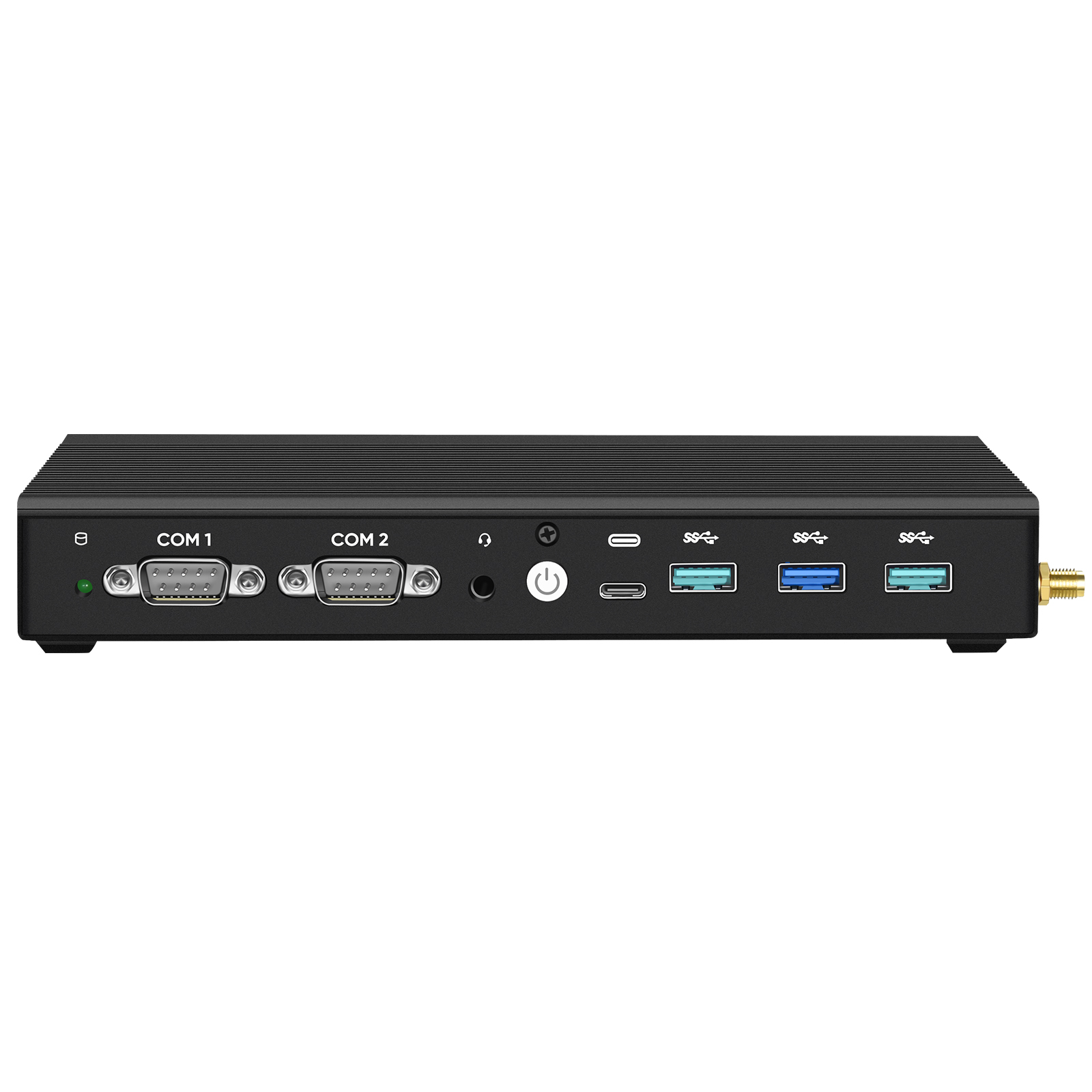

Front Panel
- 1 × Power Button
- 1 × Combo MIC Jack
- 3 × USB 3.0 Type-A
- 1 × USB 3.0 Type-C
- 2 × COM232/485 (jumper)

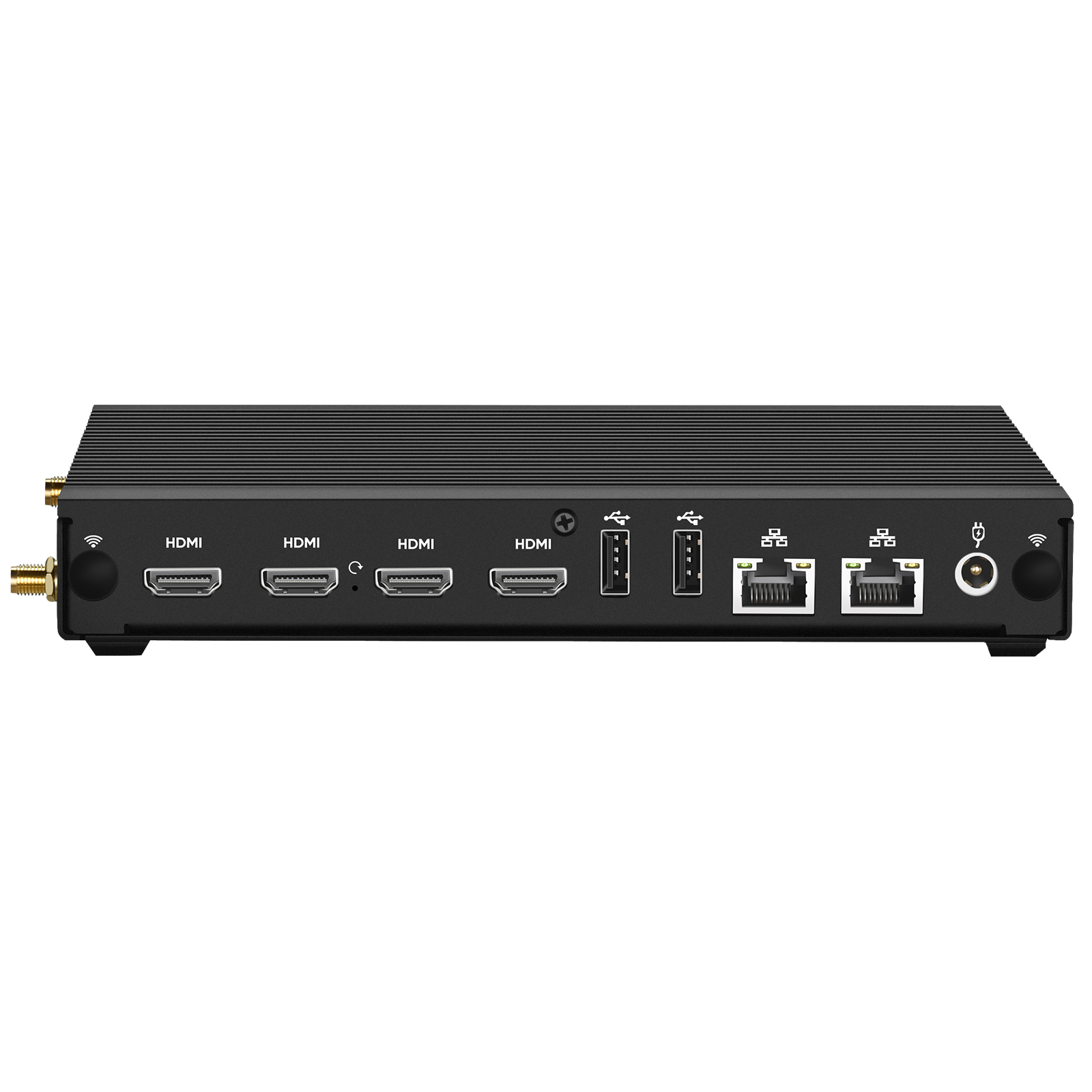

Rear Panel
- 4 × HDMI 2.0b (4K@60Hz)
- 2 × 2.5G Ethernet
- 2 × USB 2.0
Wireless / Internal
- Wi-Fi 6/6E (M.2 2230 E-key)
- 4G/5G (M.2 M-key + SIM slot)
- TPM 2.0 security chip
- 2 × SO-DIMM DDR5 slots
- 2 × M.2 2280 SSD slots
- VESA 70×70 / 100×100mm
